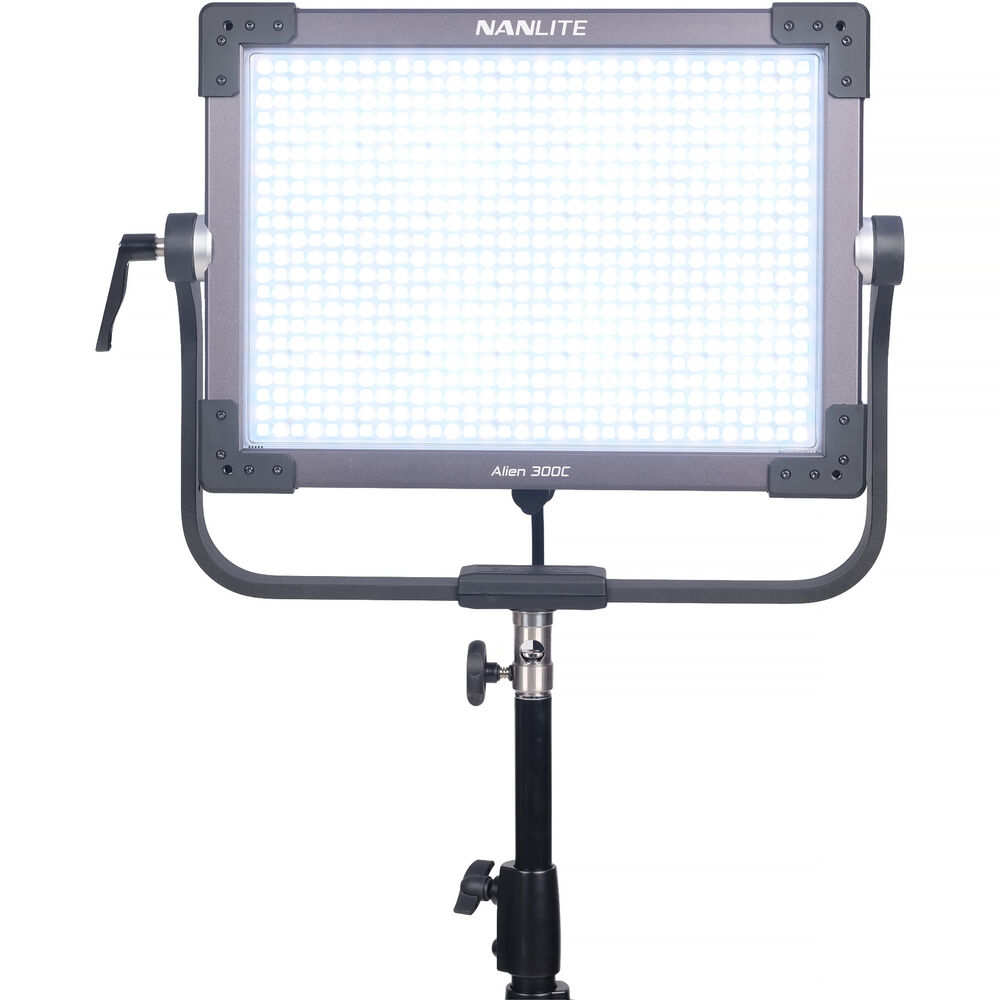

Nanlite Alien 300C RGB LED Light Panel

Nanlite Alien 300CSpecs

Key Specs

Item Type	1x LED Light Panel
Included Light Modifier	1x Softbox with Removable Grid 2x Diffuser
Included Storage Case	Yes
Photometrics	3200K: 2336 fc / 25,150 Lux at 3.3' / 1 m 276 fc / 2980 Lux at 9.8' / 3 m 5600K: 2659 fc / 28,630 Lux at 3.3' / 1 m 313 fc / 3373 Lux at 9.8' / 3 m
Color Temperature	2700 to 12,000K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 96 TLCI 97 SSI 84 at 3200K SSI 74 at 5600K TM-30 Rf 94 TM-30 Rg 100
Dimming	App-Controlled / Controller Included / DMX / RDM • 0 to 100%
Front Accessory Mount	Proprietary
Wireless Remote Control Type	Bluetooth Radio/RF Wireless CRMX
Power Source	AC Power (Cable Included) Battery (Not Included)
Battery Plate Type	2x V-Mount (Included)
Battery	2x V-Mount Rechargeable, 14.4 to 26 VDC (Not Included)
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	300 W
Fixture Mounting	1x 5/8" Receiver (Via Yoke Mount)

Light Fixture

Item Type	1x LED Light Panel
Included Light Modifier	1x Softbox with Removable Grid 2x Diffuser
Included Storage Case	Yes
Lumens	26,940 (at 3200K) 31,298 (at 5600K)
Photometrics	3200K: 2336 fc / 25,150 Lux at 3.3' / 1 m 276 fc / 2980 Lux at 9.8' / 3 m 5600K: 2659 fc / 28,630 Lux at 3.3' / 1 m 313 fc / 3373 Lux at 9.8' / 3 m
Color Temperature	2700 to 12,000K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 96 TLCI 97 SSI 84 at 3200K SSI 74 at 5600K TM-30 Rf 94 TM-30 Rg 100
Dimming	App-Controlled / Controller Included / DMX / RDM • 0 to 100%
Cooling System	Fan
Beam Angle	60°
Built-In Flash	No
Preprogrammed Effects	Yes
Umbrella Mount	No
Front Accessory Mount	Proprietary

Connectivity

Wireless Remote Control Type	Bluetooth Radio/RF Wireless CRMX
Mobile App Compatible	Yes: Android & iOS App Name: NANLINK Functionality: Remote Control
Wireless Frequency	2.4 GHz

Power & I/O

Power Source	AC Power (Cable Included) Battery (Not Included)
Inputs/Outputs	Light Fixture To Power Supply/Controller: 1x Unspecified Power Input Power Supply/Controller To Light Fixture: 1x Unspecified Power Output 1x Unspecified AC Power Input
Battery Plate Type	2x V-Mount (Included)
Battery	2x V-Mount Rechargeable, 14.4 to 26 VDC (Not Included)
Input Power	100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable	1x Unspecified to Unspecified Cable
Inline Switch	No
Power Pass-Thru	No
Power Consumption	300 W

Mounting

Yoke Type	Manually-Operated Yoke
Fixture Mounting	1x 5/8" Receiver (Via Yoke Mount)

General

Display	Yes
Environmental Resistance	Dust/Water-Resistant (IP55)
Operating Conditions	-4 to 113°F / -20 to 45°C
Certifications	CE, UKCA, RoHS, PSEDiamond Mark, Kcc, BIS, FCCID, ETL, cETL, NCC
Dimensions	20.22 x 17.88 x 3.91" / 51.36 x 45.42 x 9.93 cm (Fixture) 9.21 x 6.32 x 5.05" / 23.39 x 16.05 x 12.83 cm (Power Supply/Controller) 18.31 x 13.78 x 4.72" / 46.51 x 35 x 11.99 cm (Softbox Size)
Weight	14.55 lb / 6.6 kg (Fixture) 5.89 lb / 2.67 kg (Power Supply/Controller)

Description

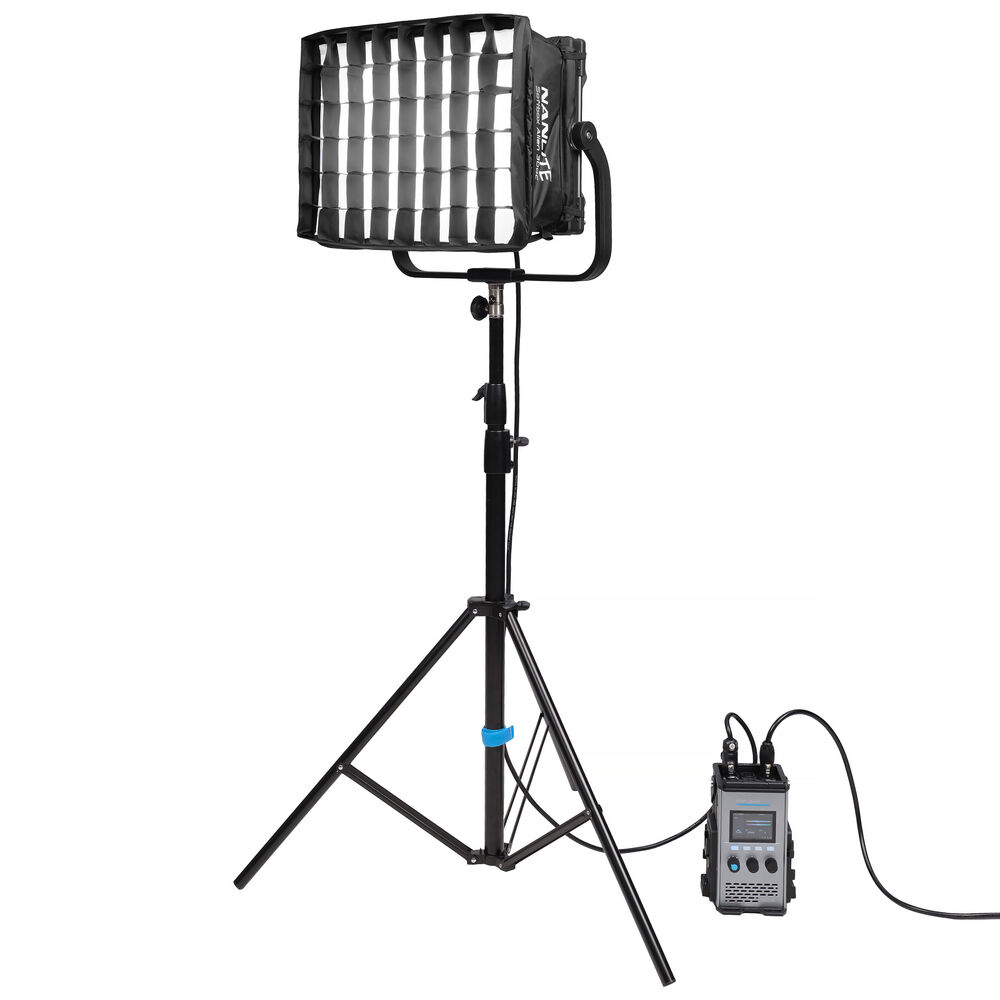

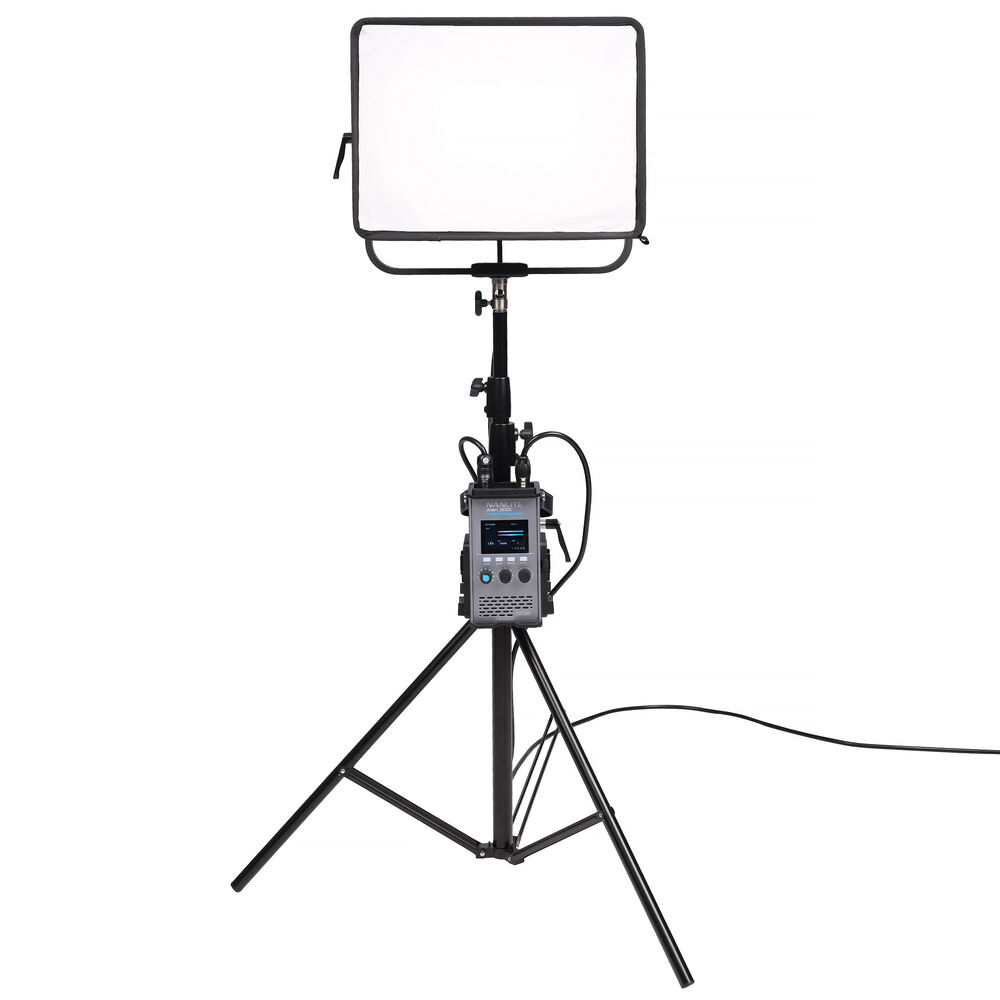

Nanlite thought of every aspect to make the Alien 300C RGB LED Light Panel a multifaceted LED panel that checks every box for complete lighting control and high brightness. Designed to be efficiently assembled with a quick release softbox, the Alien 300C is a compact 20.2 x 17.8″ RGBWW fixture that is twice as bright as the 150C version. It offers a bright throw and an extended CCT range of up to 12,000K while running on AC power, using up to two optional V-mount batteries, or external 48V power sources. Its versatility doesn’t stop there, as the panel’s control options cover the most varied methods, including onboard or app control, 2.4 GHz wireless, DMX/RDM, and CRMX LumenRadio. In addition to the softbox that allows setup and breakdown with speed and ease, Nanlite includes a grid and two diffusers for better control. The Alien 300C’s body is IP55 rated for protection against dust and water, while its conveniently separate control unit can be protected with a rain cover carefully included in the box. A padded carry case allows you to store and travel with the LED panel and all its included accessories.

RGBWW Quality Lighting

Designed to seamlessly integrate into any ambient light situation, the Alien 300C is a tunable RGBWW panel for colorful, creative effects. It has an expansive CCT range of 2700 to 12,000K and high CRI/TLCI ratings of 96/97 as indicators of accuracy in color rendering. It’s also possible to alter the +/- 150 green/magenta balance for greater precision, as well as adjust light intensity from 0 to 100% in fine 0.1% increments.

Impressive Throw & Features

One of the Alien 300C’s advanced functions is a full RGB mode, which gives you access to literally thousands of different color combinations for optimal choice ability. The fixture also offers 151 gels and other features, such as HSI mode and XY coordinates. When using the panel at 5600K, the Alien 300C outputs 28,630 lux at 3.3′.

15 Built-In Color Effects

15 built-in effects can easily be customized and saved as presets in the NANLINK app. The effects include HUE loop, CCT loop, INT loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, fireworks, explosion, and welding.

Full Control

Adjust settings using the onboard controls with a 3.2″ screen or with the NANLINK mobile app for iOS and Android. The app provides color matching, XY color space setting functions, and more. Going further, 2.4 GHz provides control through the separately available WS-TB-1 transmitter box for more elaborate setups or with the optional WS-RC-C2 handheld remote. DMX/RDM control and CRMX LumenRadio are also supported for advanced users.

Power Anywhere

The Alien 300C can run off either on AC power or using optional V-mount batteries, so you can operate it in any location in the world regardless of power availability.

The separate control unit has two V-mount battery plates for either one or two separately available 14.4-14.8 or a 26-28V V-mount batteries
When using two optional 26V 270Wh V-mount batteries, the Alien 300C runs for approximately one hour and 20 minutes at 100% brightness
It can run on a single separately available 14.4-14.8V V-mount battery with a 45% maximum output or on a single 26-28V V-mount battery with a 75% maximum output
It requires two optional V-mount batteries to run at 100%
Users can even mix the V-mount batteries by using one 14.4V and one 28V at 100%

Quiet Fan Operation

The panel runs quiet thanks to its different fan-off and smart fan modes, a real asset in sound-sensitive environments.

Other Benefits

360° rotating yoke
Quick adjustments by pressing local knobs
Max and constant output modes
USB port allows for future updates, but it also provides power to optional DMX receivers
IP20-rated control unit comes with a rain cover that will also protect the optional V-mount batteries
Works with optional barndoors

Additional information
